> Iimveliso > Ibholt > I-Hex Head Bolt > I-Hexagon Fit Bolts eneNgcaciso yeNja enemisonto ende

Iimveliso ezitsha

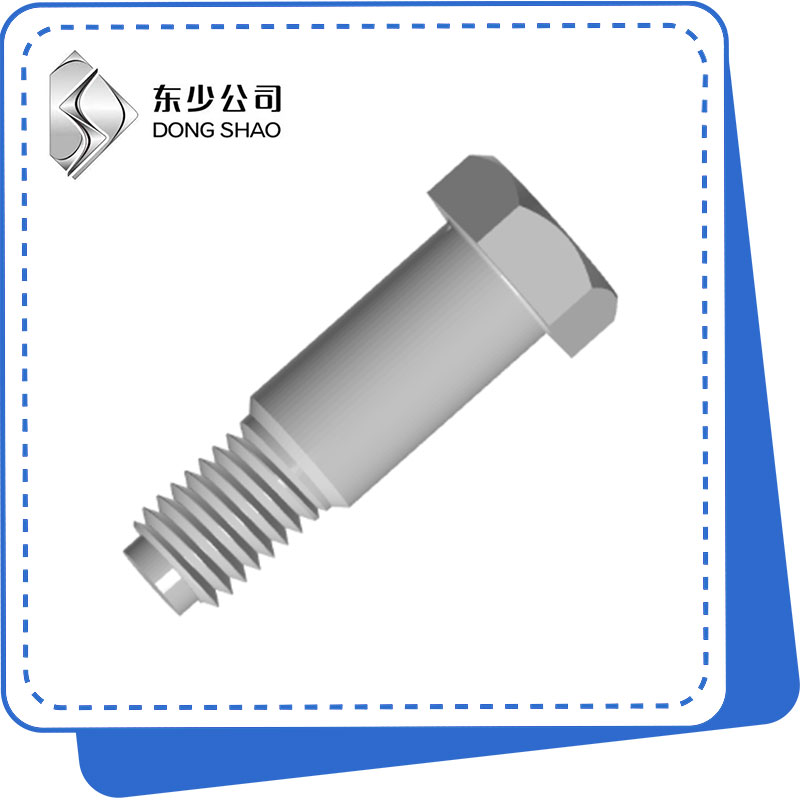

I-Hexagon Fit Bolts eneNgcaciso yeNja enemisonto ende

I-DONGSHAO yenye yeeBolts ze-Hexagon Fit ezikhokelayo zaseChina kunye nabavelisi beNja yeNja eNxibelele, ababoneleli kunye nabathumela ngaphandle.

Thumela uMbuzo

Ingcaciso yeMveliso

IHebei Dongshao Fastener Manufacturing Co., Ltd. ngumboneleli owaziwayo kunye nomvelisi weebholiti zehexagon ezifanelekileyo ezinencam yenja enentambo ende eTshayina.

Imveliso yayo yeebholiti ze-hexagon ezilungelelanisiweyo ezinencam yenja emide zinezi mpawu zilandelayo: Amandla okuqinisa awomeleleyo, anokumelana noxinzelelo olunamandla, kwaye aphakame kakhulu kunebholiti ye-hex jikelele; Anti-ukukhulula, usebenzisa i-nut yokutshixa okanye uyilo lomsesane ochasene nokukhulula, ukuqinisekisa ukuba uxhulumaniso aluyi kukhululeka ngenxa ye-vibration;I-Corrosion resistant, inokusebenzisa insimbi engenasici okanye iibholiti ezikhethekileyo zonyango, ezilungele ukusetyenziswa kwiindawo ezinzima;Ubomi obude, ubomi obude benkonzo, kunokunciphisa iindleko zokutshintshwa kunye nokugcinwa.

Oku kulandelayo zezinye iinkqubo eziqhelekileyo ze-hexagon fit bolts ezinendawo yenja ephothiweyo ende: Ibala lolwakhiwo, ibala lombane, intsimi yoomatshini, ibala lesakhiwo sentsimbi, ishishini leemoto, njl.

IParameter yeMveliso

(mm)	M6	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M36	M42	M48
P	1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3	3	3.5	4	4.5	5
b max	11.5	14.5	17	19	23	26	28	29	32	35	38	46	50	59	63
b min	9.5	12.5	15	17	21	24	26	27	30	33	36	44	48	57	61
ds max	7	9	11	13	15	17	19	21	23	25	28	32	38	44	50
ds min	6.964	8.964	10.957	12.957	14.957	16.957	18.948	20.948	22.948	24.948	27.948	31.938	37.938	43.938	49.938
s max	10	13	16	18	21	24	27	30	34	36	41	46	55	65	75
s min	9.78	12.73	15.73	17.73	20.67	23.67	26.67	29.67	33.38	35.38	40	45	53.8	63.8	73.1
k min	3.85	4.85	5.85	6.82	7.82	8.82	9.82	10.78	11.78	12.78	14.65	16.65	19.58	22.58	25.58
k max	4.15	5.15	6.15	7.18	8.18	9.18	10.18	11.22	12.22	13.22	15.35	17.35	20.42	23.42	26.42
r min	0.25	0.4	0.4	0.6	0.6	0.6	0.6	0.8	0.8	0.8	1	1	1	1.2	1.6
dp	4	5.5	7	8.5	10	12	13	15	17	18	21	23	28	33	38
z	1.5	1.5	2	2	3	3	3	4	4	4	5	5	6	7	8
kunye nemin	11.05	14.38	17.77	20.03	23.35	26.75	30.14	33.53	37.72	39.98	45.2	50.85	60.79	72.02	82.6
