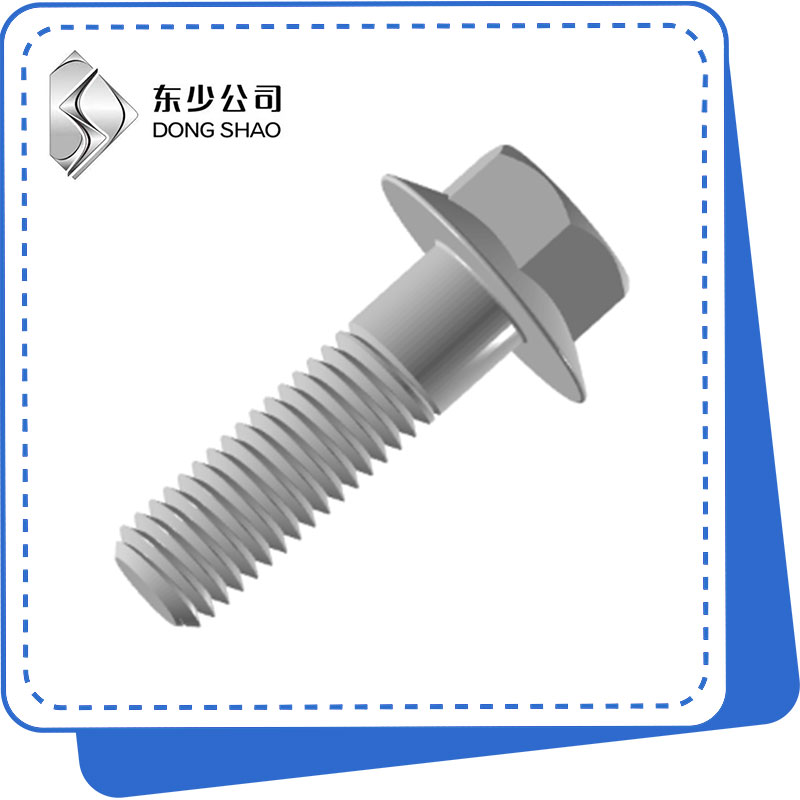

I-Hexagon entloko Flange ijongene ne-bolts

Omnye wabavelisi baseTshayina be-Hexagon entloko Olu luhlobo oluqhelekileyo lwe-bolt esetyenziswe ngokubanzi kwizakhiwo ezahlukeneyo zemveliso nezamashishini. Imalunga neenkcazo zentambo ye-M8 × 1-M16 × 1.5, intambo elungileyo, amabanga entsebenzo ye-8.89.810.912.9 kunye neBanga leMveliso A.

Thumela uMbuzo

Ingcaciso yeMveliso

I-Hebei dongShao yemveliso ye-Hounener Follener Fonge ijongene nomthengisi we-bolts kunye nomenzi we-hexagon ye-hexagonal ye-hexagonal entloko (uhlobo a) e China.

Ukuveliswa kwayo kothotho lwe-hexagonal entloko ukuthembeka kwexesha elide kunye nokuzinza.

Olu luhlobo oluqhelekileyo lwe-bolt esetyenziswe ngokubanzi kwizakhiwo ezahlukeneyo zemveliso nezamashishini. Imalunga neenkcazo zentambo ye-M8 × 1-M16 × 1.5, intambo elungileyo, amabanga entsebenzo ye-8.89.810.912.9 kunye neBanga leMveliso A.

Ukusetyenziswa kwe-hexagonal yentloko ye-hexagonal ye-hexagonal ye-hexagonal flanger (uhlobo) lubanzi kakhulu, ubukhulu becala kubandakanya le miba ilandelayo: Oomatshini bokuhamba ngeenqwelo-mafutha;

I-Hexagon entloko Flange ijongene ne-bolts parameter

(mm)	M5	M6	M8	M10	M12	M14	M16	M20
P	0.8	1	1.25	1.5	1.75	2	2	2.5
Ewe max	5.7	6.8	9.2	11.2	13.7	15.7	17.7	22.4
kaMax	11.8	14.2	18	22.3	26.6	30.5	35	43
ds max	5	6	8	10	12	14	16	20
I-DS Min	4.82	5.82	7.78	9.78	11.73	13.73	15.73	19.67
E min	8.56	10.8	14.08	16.32	19.68	22.58	25.94	32.66
k max	5.4	6.6	8.1	9.2	10.4	12.4	14.1	17.7
R min	0.25	0.4	0.4	0.4	0.6	0.6	0.6	0.8
s max	8	10	13	15	18	21	24	30
s min	7.64	9.64	12.57	14.57	17.57	20.16	23.16	29.16
